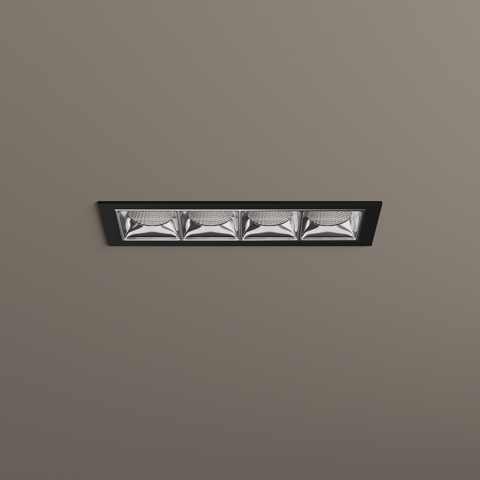

Vectra
Engineered for flexibility and refined optical performance, the Vectra Series delivers targeted illumination across diverse architectural environments.
Available in two sizes, each pairs high-performance output with a comprehensive range of beam optics, from tight spots to wall washing to meet the demands of any design. The discreet form allows the Vectra to blend seamlessly into the ceiling.
The specialised 40×80° optic is purpose-built for corridor illumination, delivering seamless, uniform coverage with >0.96 uniformity at 3m spacings.
Key Family Details
| Mounting: | Plaster Recessed |
| Beam: | 15°, 35°, 55°, 75°, 40x80°, Wall Washer |
| Warranty: | 5-Year Standard (7 Year Optional) |
| Control Gear: | Fixed Output, Phase-Cut, DALI |
| Efficacy: | Up to 115lm/W |
| Lifetime: | L80/B10 >98,000hrs |
| SCDM: | <2 |
| R9: | 64 |
| Power Factor: | >0.95 |
Download Family Data Sheet
