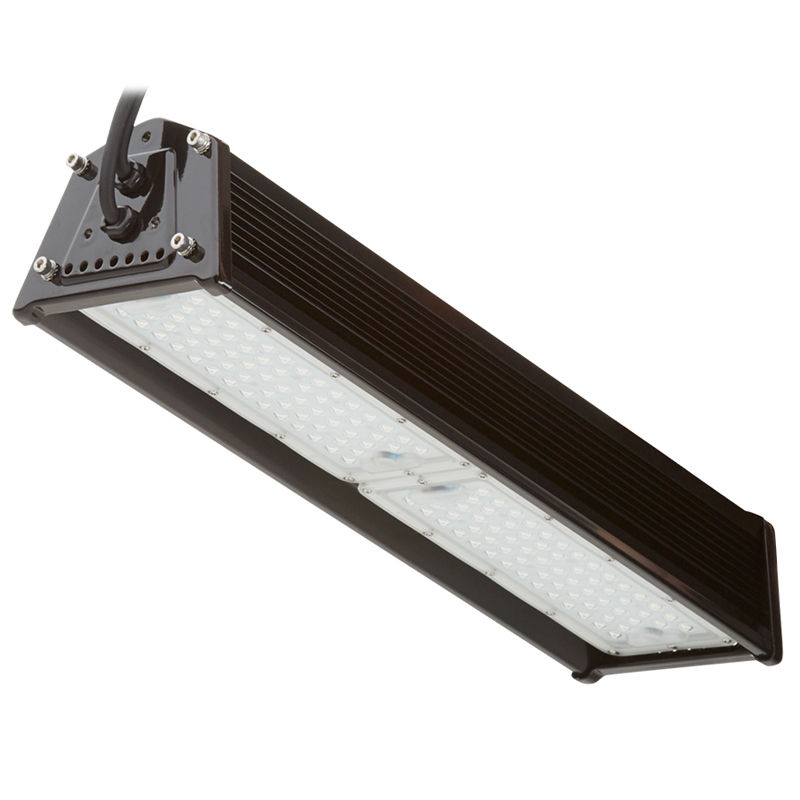

Liberty Linear

Linear low glare highbay designed for efficient rack and row lighting as well as general warehouse illumination.

Skip to the beginning of the images gallery

Art No.	Connected Wattage (W)	Delivered Lumens (lm)	Efficacy (lm/w)	CCT	Beam Angle	CRI	SDCM	Lifetime Hours	Dimensions	IP Rating	IES
Liberty Linear 90w 30°x70°	90	10923	121	4000K	30° x 70°	CRI>80	3-step	>50,000	718 x 137 x 102	IP65	Liberty Linear 90w 4000K 30x70°
Liberty Linear 90w 40°x130°	90	10865	121	4000K	40° x 130°	CRI>80	3-step	>50,000	718 x 137 x 102	IP65	Liberty Linear 90w 4000K 40x130°
Liberty Linear 90w 60°x90°	90	11707	130	4000K	60° x 90°	CRI>80	3-step	>50,000	718 x 137 x 102	IP65	Liberty Linear 90w 4000K 60x90°
Liberty Linear 90w 90°	90	11157	124	4000K	90°	CRI>80	3-step	>50,000	718 x 137 x 102	IP65	Liberty Linear 90w 4000K 90°
Liberty Linear 90w 120°	90	11210	125	4000K	120°	CRI>80	3-step	>50,000	718 x 137 x 102	IP65	Liberty Linear 90w 4000K 120°
Liberty Linear 120w 30°x70°	120	14433	120	4000K	30° x 70°	CRI>80	3-step	>50,000	948 x 137 x 102	IP65	Liberty Linear 120w 4000K 30x70°
Liberty Linear 120w 40°x130°	120	15027	125	4000K	40° x 130°	CRI>80	3-step	>50,000	948 x 137 x 102	IP65	Liberty Linear 120w 4000K 40x130°
Liberty Linear 120w 60°x90°	120	15414	128	4000K	60° x 90°	CRI>80	3-step	>50,000	948 x 137 x 102	IP65	Liberty Linear 120w 4000K 60x90°
Liberty Linear 120w 90°	120	14690	122	4000K	90°	CRI>80	3-step	>50,000	948 x 137 x 102	IP65	Liberty Linear 120w 4000K 90°
Liberty Linear 120w 120°	120	14966	125	4000K	120°	CRI>80	3-step	>50,000	948 x 137 x 102	IP65	Liberty Linear 120w 4000K 120°
Liberty Linear 150w 30°x70°	150	17930	120	4000K	30° x 70°	CRI>80	3-step	>50,000	1178 x 275 x 102	IP65	Liberty Linear 150w 4000K 30x70°
Liberty Linear 150w 40°x130°	150	18317	122	4000K	40° x 130°	CRI>80	3-step	>50,000	1178 x 275 x 102	IP65	Liberty Linear 150w 4000K 40x130°
Liberty Linear 150w 60°x90°	150	19524	130	4000K	60° x 90°	CRI>80	3-step	>50,000	1178 x 275 x 102	IP65	Liberty Linear 150w 4000K 60x90°
Liberty Linear 150w 90°	150	18195	121	4000K	90°	CRI>80	3-step	>50,000	1178 x 275 x 102	IP65	Liberty Linear 150w 4000K 90°
Liberty Linear 150w 120°	150	19172	128	4000K	120°	CRI>80	3-step	>50,000	1178 x 275 x 102	IP65	Liberty Linear 150w 4000K 120°
Liberty Linear 180w 30°x70°	180	21427	119	4000K	30° x 70°	CRI>80	3-step	>50,000	718 x 275 x 102	IP65	Liberty Linear 180w 4000K 30x70°
Liberty Linear 180w 40°x130°	180	22039	122	4000K	40° x 130°	CRI>80	3-step	>50,000	718 x 275 x 102	IP65	Liberty Linear 180w 4000K 40x130°
Liberty Linear 180w 60°x90°	180	22778	127	4000K	60° x 90°	CRI>80	3-step	>50,000	718 x 275 x 102	IP65	Liberty Linear 180w 4000K 60x90°
Liberty Linear 180w 90°	180	21561	120	4000K	90°	CRI>80	3-step	>50,000	718 x 275 x 102	IP65	Liberty Linear 180w 4000K 90°
Liberty Linear 180w 120°	180	22339	124	4000K	120°	CRI>80	3-step	>50,000	718 x 275 x 102	IP65	Liberty Linear 180w 4000K 120°

Liberty Linear

Specification

Finish Color
