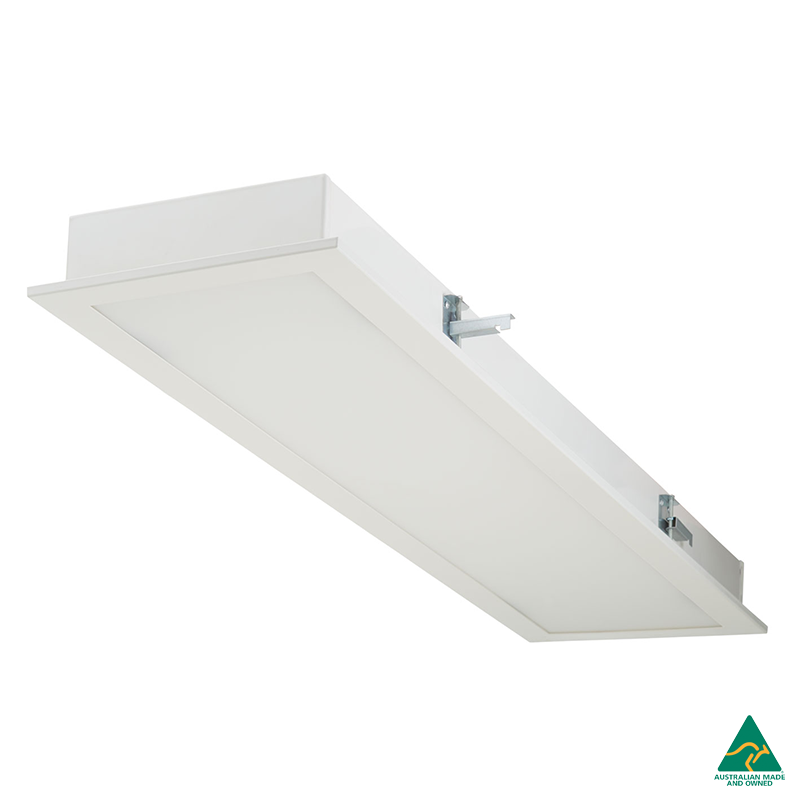

Monarch Long

The Monarch is a cleanroom grade recessed luminaire designed for any application where non-contamination is a specification.

The standard Monarch is fitted with a PA90 opal diffuser, the Monarch can also be specified with a QPRO diffuser which utilises the latest in glare-reduction technology to provide a true UGR luminaire.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Art No.	Connected Wattage (W)	Delivered Lumens (lm)	Efficacy (lm/w)	CCT	Beam Angle	CRI	SDCM	Lifetime Hours	Dimensions	IP Rating	IES
Monarch Long QPRO 20w	20	2296	115	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 20w - 2296lm 840 QPRO
Monarch Long PA90 20w	20	2391	120	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 20w - 2391lm 840 PA90
Monarch Long QPRO 24w	24	2729	114	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 24w - 2729lm 840 QPRO
Monarch Long PA90 24w	24	2838	118	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 24w - 2838lm 840 PA90
Monarch Long QPRO 28w	28	3152	113	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 28w - 3152lm 840 QPRO
Monarch Long PA90 28w	28	3276	117	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 28w - 3276lm 840 PA90
Monarch Long QPRO 32w	32	3564	111	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 32w - 3564lm 840 QPRO
Monarch Long PA90 32w	32	3703	116	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 32w - 3703lm 840 PA90
Monarch Long QPRO 36w	36	3967	110	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 36w - 3967lm 840 QPRO
Monarch Long PA90 36w	36	4120	114	4000K	110°	CRI>80	3-step	>70,000	1200 x 310 x 80	IP44	Monarch Long 36w - 4120lm 840 PA90

Monarch Long

Specification

Finish Color
