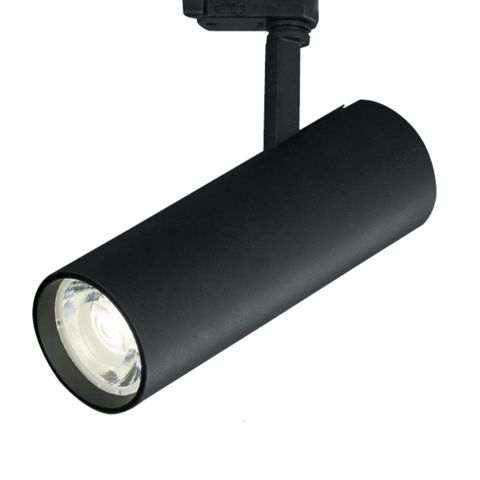

Roll XL

The Roll is a sleek modern track luminaire without a visible driver box, can be used to blend into an environment or can be statement pieces. The Roll comes in a few sizes to accommodate different lumen packages.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Art No.	Connected Wattage (W)	Delivered Lumens (lm)	Efficacy (lm/w)	CCT	Beam Angle	CRI	SDCM	Lifetime Hours	Dimensions	IP Rating	IES	Create PDF
Roll XL 20w 20° 3K	20	2277	116	3000K	20°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 20w - 2277lm 20° 830
Roll XL 20w 20° 4K	20	2374	121	4000K	20°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 20w - 2374lm 20° 840
Roll XL 20w 32° 3K	20	2298	117	3000K	32°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 20w - 2298lm 32° 830
Roll XL 20w 32° 4K	20	2381	121	4000K	32°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 20w - 2381lm 32° 840
Roll XL 20w 48° 3K	20	2355	120	3000K	48°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 20w - 2335lm 48° 830
Roll XL 20w 48° 4K	20	2409	123	4000K	48°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 20w - 2409lm 48° 840
Roll XL 27w 20° 3K	27	2993	110	3000K	20°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 27w - 2993lm 20° 830
Roll XL 27w 20° 4K	27	3173	117	4000K	20°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 27w - 3173lm 20° 840
Roll XL 27w 32° 3K	27	3086	113	3000K	32°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 27w - 3086lm 32° 830
Roll XL 27w 32° 4K	27	3205	111	4000K	32°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 27w - 3205lm 32° 840
Roll XL 27w 48° 3K	27	3119	115	3000K	48°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 27w - 3119lm 48° 830
Roll XL 27w 48° 4K	27	3252	120	4000K	48°	CRI>80	3-step	>50,000	83 x 253	IP20	Roll XL 27w - 3253lm 48° 840
