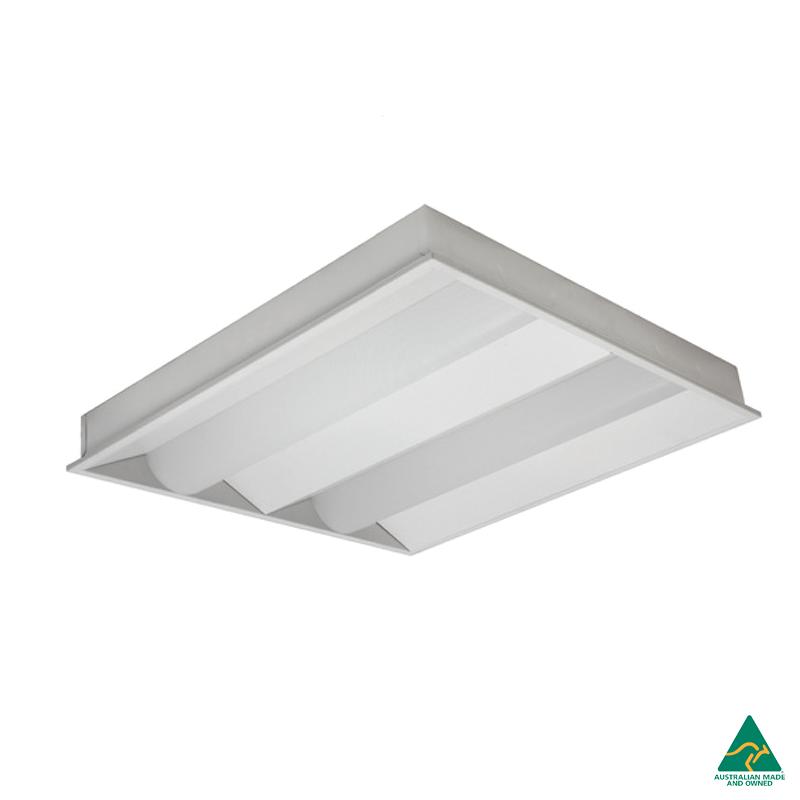

Eaton Square

With modern technology comes modern designs. The Eaton is one of the highest system efficacies in the Q Industries troffer family. With a custom semi-cylindrical diffuser accompanied by a curved diffuser the pushes light side-wards, resulting in excellent uniformity across any environment

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Art No.	Connected Wattage (W)	Delivered Lumens (lm)	Efficacy (lm/w)	CCT	Beam Angle	CRI	SDCM	Lifetime Hours	Dimensions	IP Rating	IES
Eaton Square 20w	20	2605	130	4000K	110°	90+	3-step	>70,000	600 x 600 x 70	IP20	Eaton Square 20w - 2605lm 840
Eaton Square 24w	24	3096	129	4000K	110°	90+	3-step	>70,000	600 x 600 x 70	IP20	Eaton Square 24w - 3096lm 840
Eaton Square 28w	28	3571	128	4000K	110°	90+	3-step	>70,000	600 x 600 x 70	IP20	Eaton Square 28w - 3571lm 840
Eaton Square 32w	32	3975	124	4000K	110°	90+	3-step	>70,000	600 x 600 x 70	IP20	Eaton Square 32w - 3975lm 840
Eaton Square 36w	36	4451	124	4000K	110°	90+	3-step	>70,000	600 x 600 x 70	IP20	Eaton Square 36w - 4451lm 840

Eaton Square

Specification

Finish Color
