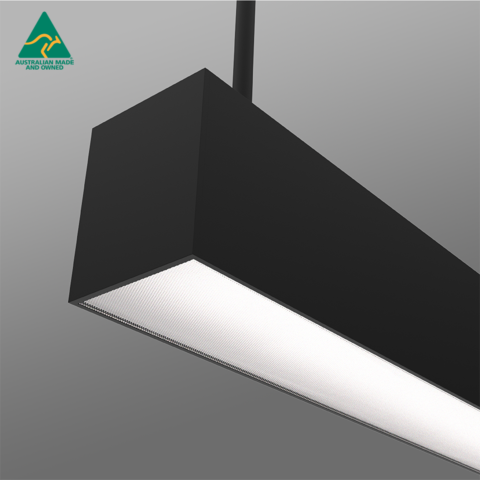

Lightplane 70 RS OD

The Lightplane 70 OD, engineered and made in Australia for maximum versatility and efficiency, the LPL70 OD comes with an economic opalised diffuser that provides a homogeneous and dot-free lighting solution. It Features customisable lengths, angles and shapes, tailored for a dynamic industry.

With an efficacy of up to 126lm/W, it guarantees superior energy performance. The LPL70 is quick to install with the simple Zephyr-Link click lock gear tray for maintenance and future upgrades. Available finishes include white, black or natural anodised look as standard as well as custom RAL / Dulux colours.

Key Family Details

Warranty:	5-Year Standard (7 & 10 Year Optional)
Control Gear:	Fixed Output, DALI, Casambi (All Integral)
Efficacy:	Up to 125lm/W
Lifetime:	L80/B10 >85,250hrs
SCDM:	<2
Power Factor:	0.95 (Minimum)
COI Compliance:	Yes (4000K)

Download

Download Family Data Sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Art No.	Connected Wattage (W)	Delivered Lumens (lm)	Efficacy (lm/w)	CCT	Beam Angle	CRI	SDCM	Lifetime Hours	Dimensions	IP Rating	IES
LPL70.RS.10WM.OD.930	10	1160	116	3000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.10WM.OD.930
LPL70.RS.14WM.OD.930	14	1679	119	3000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.14WM.OD.930
LPL70.RS.20WM.OD.930	20	2370	118	3000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.20WM.OD.930
LPL70.RS.24WM.OD.930	24	2821	117	3000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.24WM.OD.930
LPL70.RS.10WM.OD.940	10	1193	119	4000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.10WM.OD.940
LPL70.RS.14WM.OD.940	14	1762	125	4000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.14WM.OD.940
LPL70.RS.20WM.OD.940	20	2536	126	4000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.20WM.OD.940
LPL70.RS.24WM.OD.940	24	3019	125	4000K	103°	90+	2-step	L80/B10: >85,250	68 x 85	IP20	LPL70.24WM.OD.940
