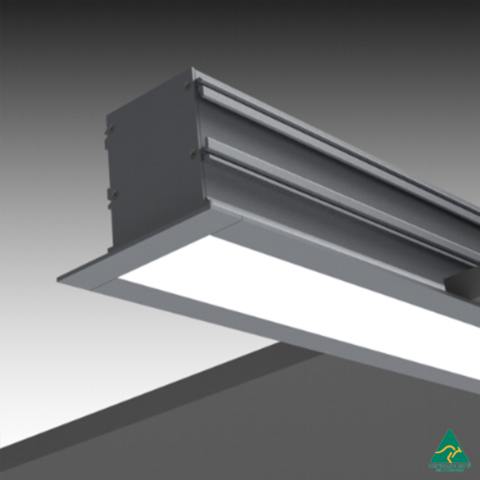

Lightplane 2.5 Recessed

Lightplane 2.5 is a mid-sized (97mm x 83mm) extruded aluminium profile with a flush lens. Coming standard with OSRAM, Philips or Tridonic linear LED boards, machined end caps and an opal acrylic diffuser.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Art No.	Connected Wattage (W)	Delivered Lumens (lm)	Efficacy (lm/w)	CCT	Beam Angle	CRI	SDCM	Lifetime Hours	Dimensions	IP Rating	IES
Lightplane 2.5 Recessed 13w/m	13	1100	80	4000K	110°	CRI>80	3-step	>70,000	97 x 83	IP20	Lightplane 2.5 Deep G2 - 13w - 1100lm 840
Lightplane 2.5 Recessed 17w/m	17	1455	83	4000K	110°	CRI>80	3-step	>70,000	97 x 83	IP20	Lightplane 2.5 Deep G2 - 17w - 1450lm 840
Lightplane 2.5 Recessed 21w/m	21	1798	83	4000K	110°	CRI>80	3-step	>70,000	97 x 83	IP20	Lightplane 2.5 Deep G2 - 21w - 1800lm 840
Lightplane 2.5 Recessed 25w/m	25	2128	83	4000K	110°	CRI>80	3-step	>70,000	97 x 83	IP20	Lightplane 2.5 Deep G2 - 25w - 2100lm 840
Lightplane 2.5 Recessed 29w/m	29	2432	82	4000K	110°	CRI>80	3-step	>70,000	97 x 83	IP20	Lightplane 2.5 Deep G2 - 29w - 2400lm 840

Lightplane 2.5 Recessed

Specification

Finish Color
