Lightplane 3.5 Suspended

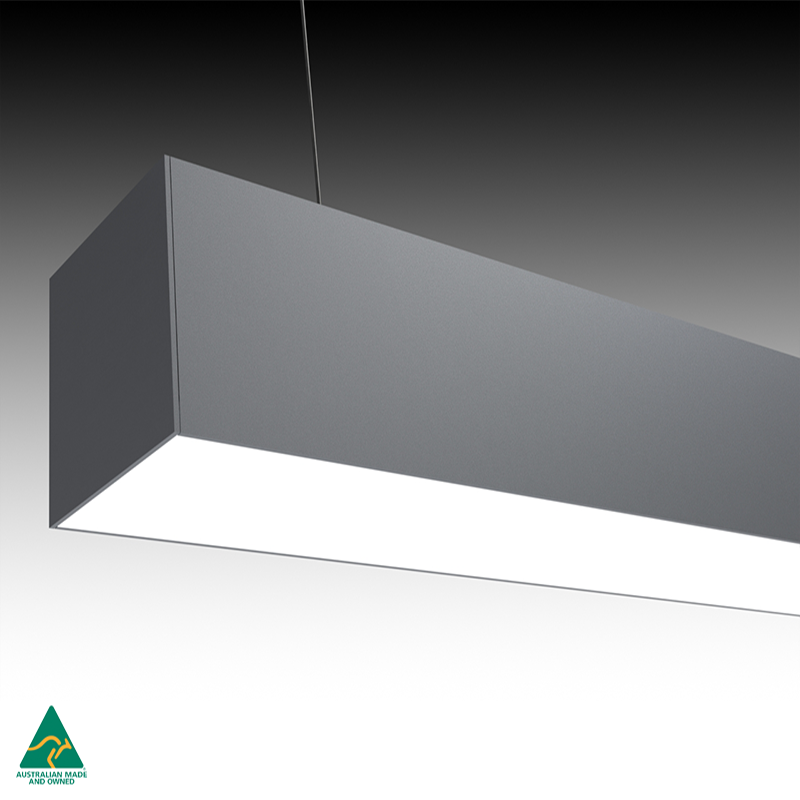

Lightplane 3.5 is a mid-sized (94mm x 94mm) extruded aluminium profile with a flush lens. Coming standard with OSRAM, Philips or Tridonic linear LED boards, screwless machined end caps and an opal acrylic diffuser.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Art No.	Connected Wattage (W)	Delivered Lumens (lm)	Efficacy (lm/w)	CCT	Beam Angle	CRI	SDCM	Lifetime Hours	Dimensions	IP Rating	IES
Lightplane 3.5 Suspended 20w/m	20	1964	98	4000K	110°	CRI>80	3-step	>70,000	94 x 94	IP20	Lightplane 3.5 - 20w - 1964lm 840
Lightplane 3.5 Suspended 24w/m	24	2303	96	4000K	110°	CRI>80	3-step	>70,000	94 x 94	IP20	Lightplane 3.5 - 24w - 2302lm 840
Lightplane 3.5 Suspended 28w/m	28	2621	94	4000K	110°	CRI>80	3-step	>70,000	94 x 94	IP20	Lightplane 3.5 - 28w - 2621lm 840
Lightplane 3.5 Suspended 32w/m	32	2962	93	4000K	110°	CRI>80	3-step	>70,000	94 x 94	IP20	Lightplane 3.5 - 32w - 2962lm 840

Lightplane 3.5 Suspended

Specification

Finish Color
