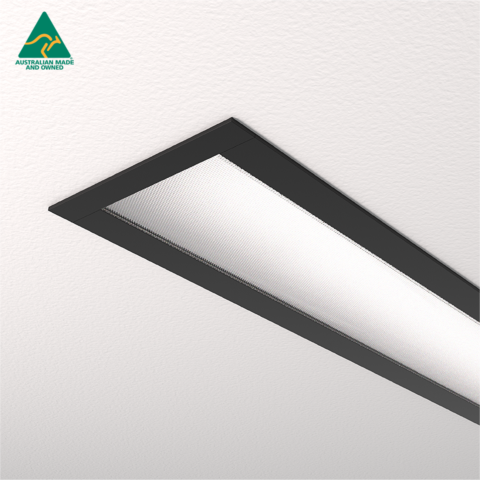

Lightplane 70 REC CMP

Meet the Lightplane 70 CMP, engineered and made in Australia for maximum versatility and efficiency, the LPL70 CMP comes
with a clear micro-prismatic (CMP) diffuser that provides a low glare, homogenous lighting solution.
It features customizable lengths, angles, and shapes, tailored for a dynamic industry.
With up to 129m/W efficacy, it guarantees superior energy performance. The LPL70 is quick to install with the
simple Zephyr-Link click lock gear tray for maintenance and future upgrades. Available finishes include white, black, or natural
anodised look, plus custom RAL / Dulux colours. A MacAdams step <2, and standard high CRI of 90+, ensuring excellent light quality for
any space and is backed by a 5-year warranty (extendable up to 10 years).

Key Family Details

Warranty:5-Year Standard (7 & 10 Year Optional)
Control Gear:Fixed Output, DALI, Casambi (All Integral)
Efficacy:Up to 129lm/W
Lifetime:L80/B10 >85,250hrs
SCDM:<2
Power Factor:0.95 (Minimum)
COI Compliance:Yes (4000K)
Download Family Data Sheet
Art No.Connected Wattage (W)Delivered Lumens (lm)Efficacy (lm/w)CCTBeam AngleCRISDCMLifetime HoursDimensionsIP RatingIESCreate PDF
LPL70.REC.10WM.CMP.9301011871183000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
LPL70.REC.14WM.CMP.9301417181223000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
LPL70.REC.20WM.CMP.9302024261213000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
LPL70.REC.24WM.CMP.9302428881203000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
LPL70.REC.10WM.CMP.9401012211224000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
LPL70.REC.14WM.CMP.9401418031284000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
LPL70.REC.20WM.CMP.9402025961294000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
LPL70.REC.24WM.CMP.9402430901284000K103°90+2-stepL80/B10: >85,250 68 x 85IP20
